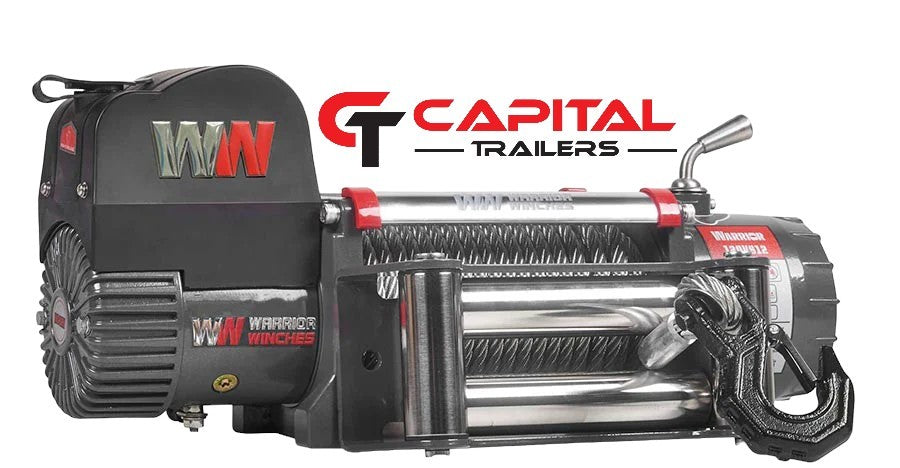

Winch, 12,500lbs Warrior Winch #125VS12-CAD

DESCRIPTION

Our high-performance winches have just improved!

The premium 'Next Generation' Samurai series is now faster, consumes less power, and features a groundbreaking external brake for better load holding and lowering capabilities without causing heat buildup in the drum.

Perfect for recovery and 4x4 applications, the series boasts a high-quality, double-sealed, series-wound motor with solid brass contacts, heavy-duty 4-pin waterproof contactors, a double-sealed drum with maintenance-free bearings, and quiet, efficient all-steel planetary gearing. It includes a stainless steel roller fairlead and fittings as standard. The 12V version also comes with a heavy-duty integrated wireless remote.

Rated Line Pull Lbs (Kg)    12500 lbs (5669kg)
Motor Type    12v : 6.7hp / 5.0kw
Gearing    253:1
Clutch    Manual
Braking Action    External Brake
Drum Size (Dia x L)    Ø2.48 “×8.8 “ (Ø63mm×223 mm)
Cable Material    Steel
Cable – Dia x L    Steel: Ø0.4”×83.6 ‘ (Ø10.2mm×25.5m)
Mounting Pattern    10" x 4.4"
Dimensions    22”×6.3”×9.8” (559 mm ×160mm ×248mm)
Net Weight Lbs (Kg)    Steel: 97 lbs (44Kg)
Certification    CE

 In the Box

• Samurai Winch
• Heavy Duty Stainless Steel Fairlead OR Aluminum Hawse Fairlead
• Steel Rope OR Synthetic Rope
• Heavy Duty Battery Leads
• 12.4 FT Wired Remote handset
• Wireless 2.4G Upgraded Remote (with 12V version only)
• Removable Heavy Duty Hook
• Isolation Switch
• Stainless Steel Mounting Hardware (nuts/bolts)
