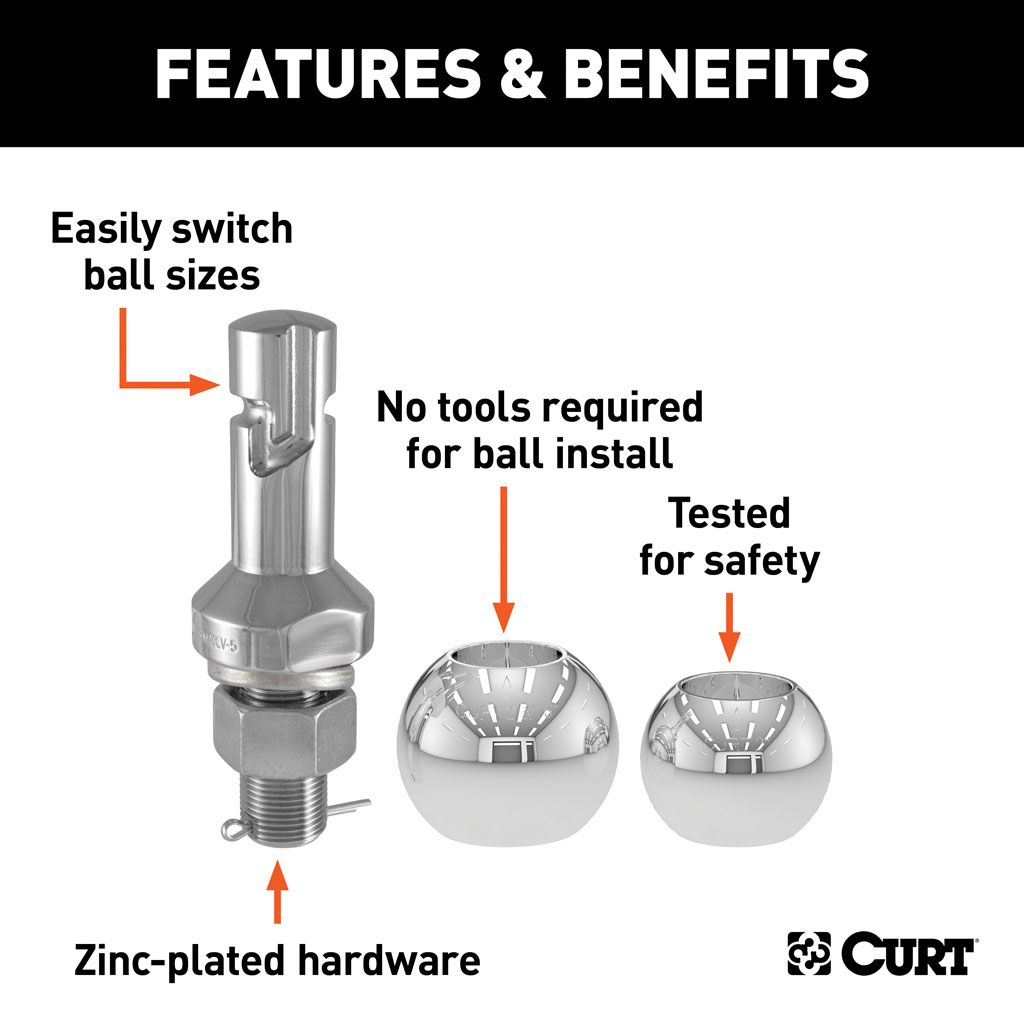

- Fits 2" or 2-5/16" couplers and accepts up to 8,000 lbs. GTW (depending on ball)
- Exclusive 'J' groove design ensures a secure system

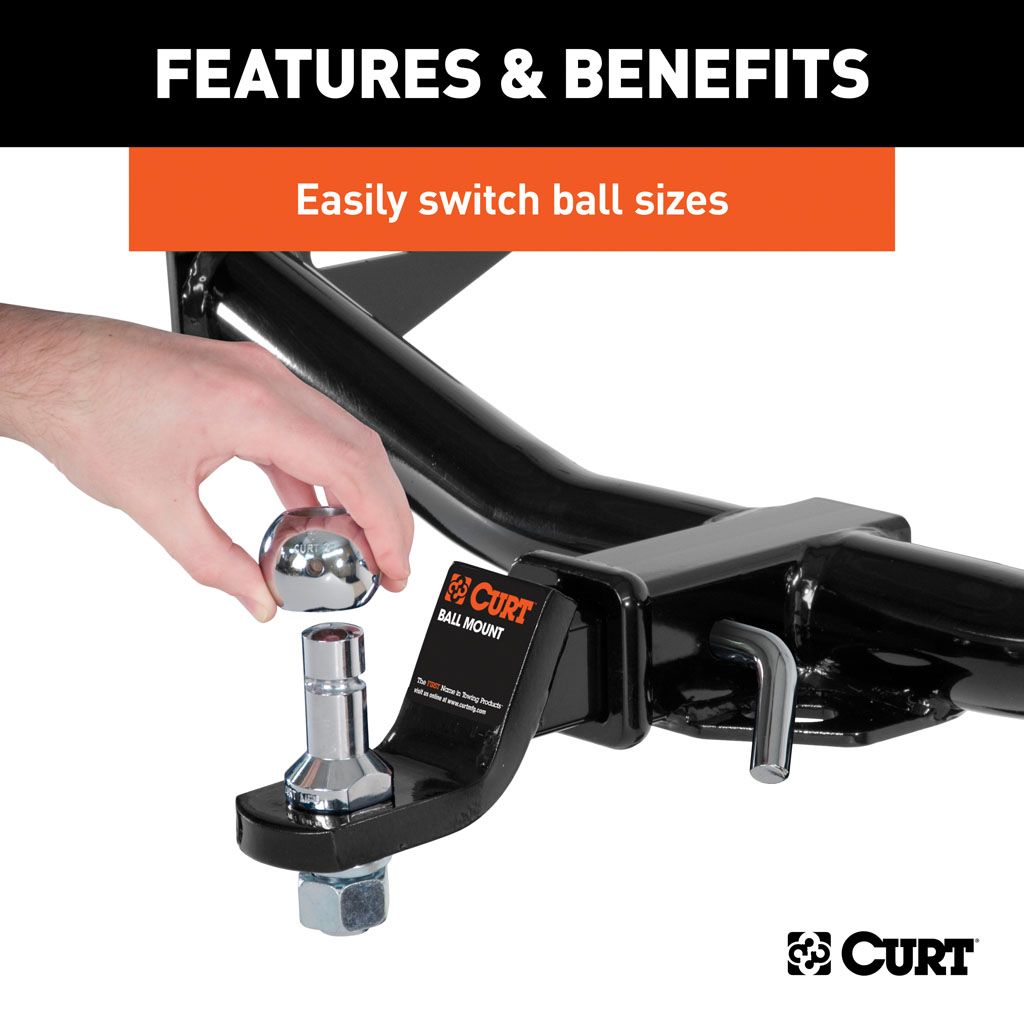

- No tools, coins or pins required for trailer ball installation
- Shank bears the weight, freeing the coupler from friction and binding
- Constructed from high-strength steel
- Protected by a premium grade, nickel chrome-plated finish
- Zinc-plated hex nut and helical lock washer for secure mounting
- Independently tested in accordance with SAE J684 for safety and proven safe
- U.S. patent# 5,169,168; Canadian patent# 1,325,445

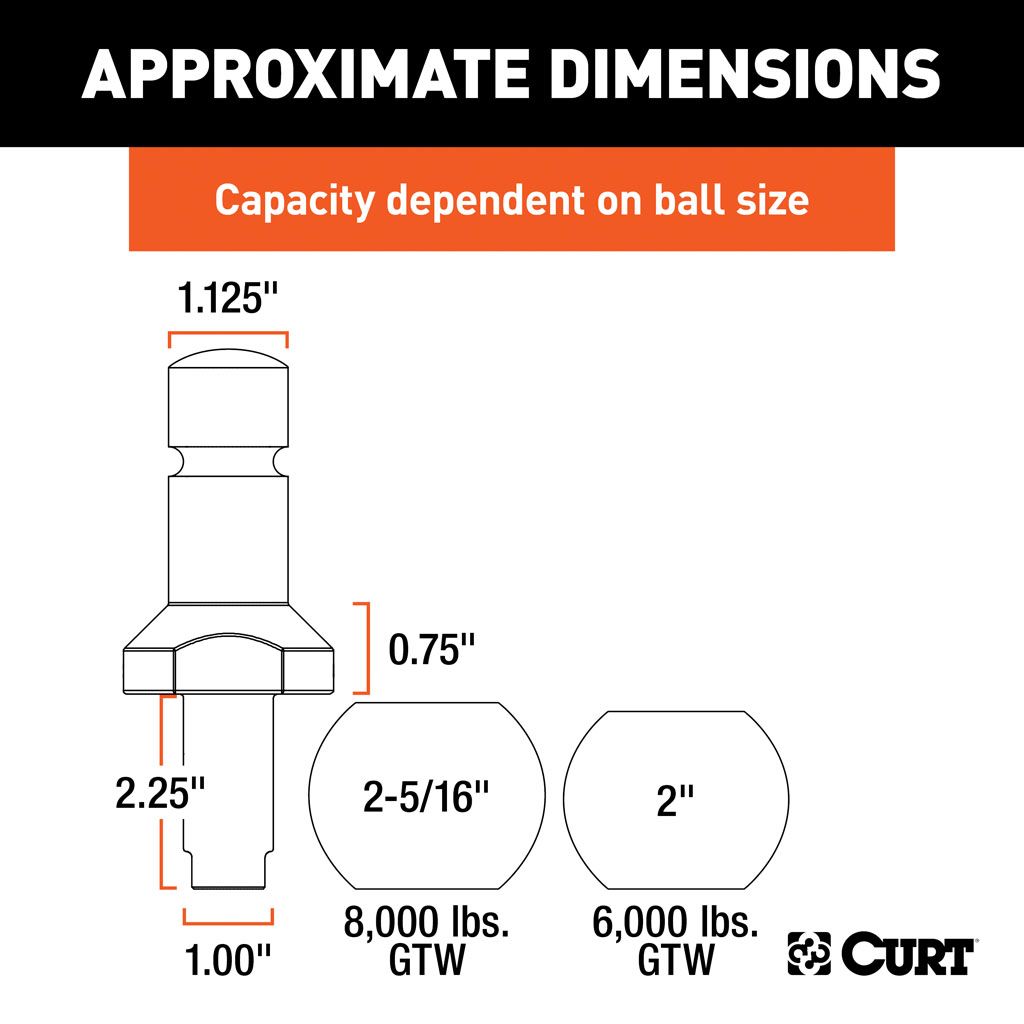

PRODUCT SPECIFICATIONS
- Part Type: Switch Ball Sets
-
Ball 1 Diameter and Capacity: 2 IN - 6,000 LB
- Ball 2 Diameter and Capacity: 2 5/16 IN - 8,000 LB
- Shank Length: 2 1/4 IN
- Shank Diameter: 1
- Neck Diameter: 1 1/8 IN
- Rise : 3/4 IN
- Finish: Chrome
