Powered Drive Kit (For Use With Bulldog 12LB Jacks 7,500lb Lift Cap)
Bulldog Single Speed Jack Motor.
12 volt DC Motor
7,500lb Lifting capacity
Use With Bulldog 12,000lb capacity, single-speed jacks
1" Shaft size
Power drive dimensions 8" long x 3 9/16" wide x 6 3/16" tall
Lifts 50% more than competition
Lifts 3" per minute at typical working loads
Can be manually cranked in the event of power loss
State of the art 12VDC electric motor
Quiet operation - 50% quieter than competitive units
Efficient use of electrical power - 60% more efficient than competitive units
Permanently lubricated to provide years of maintenance free use
Custom designed wiring harness & rocker switch enclosed in a weather proof box
Utilizes a 25 amp circuit breaker with push button reset feature
Can be used in both single & tandem jack applications

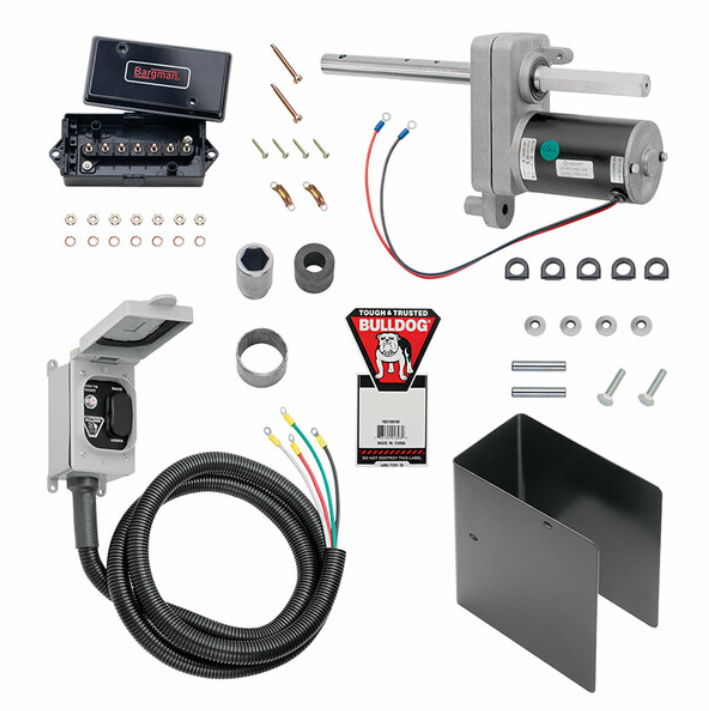

* Kit includes all necessary components for ease of installation

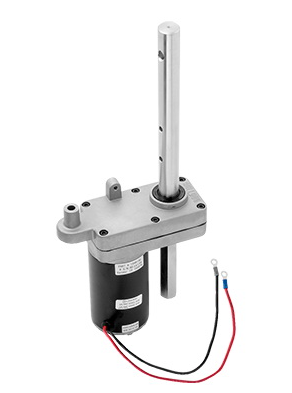

Powered drive assembly
Torque stop tube with energy absorption device
Terminal box
Wiring harness & switch box
Hex coupling (not shown, required when using in a tandem jack application)
Weather resistant cover (not shown)
