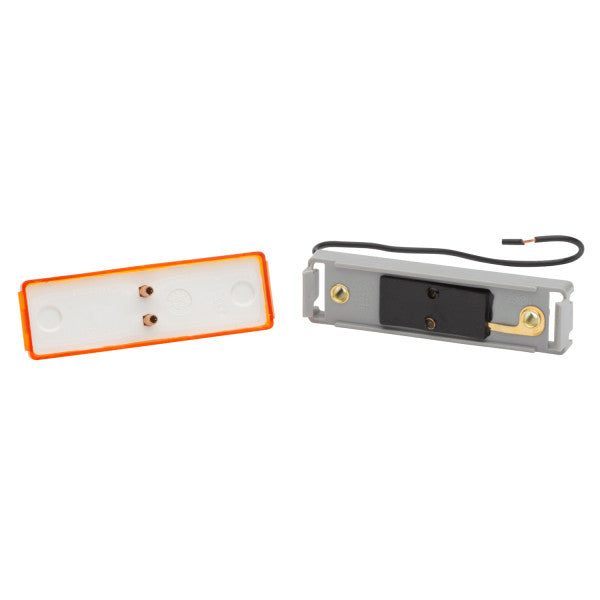

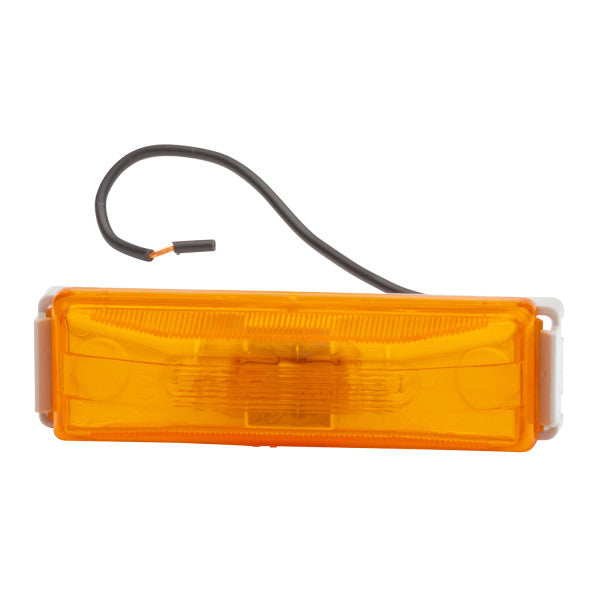

Grote Clearance Marker Light, Rectangle Amber w/ mounting bracket #45093

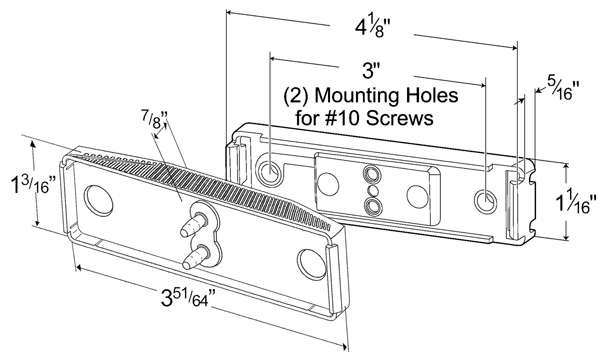

• Actual Dimensions: 3-7/8" X 1-1/4"
• Amber Clearance/Marker Light, with fender mount bracket.
• Grote Light Part #46743
• Grote Bracket Part #43850
• Also known as part #MC-67AB

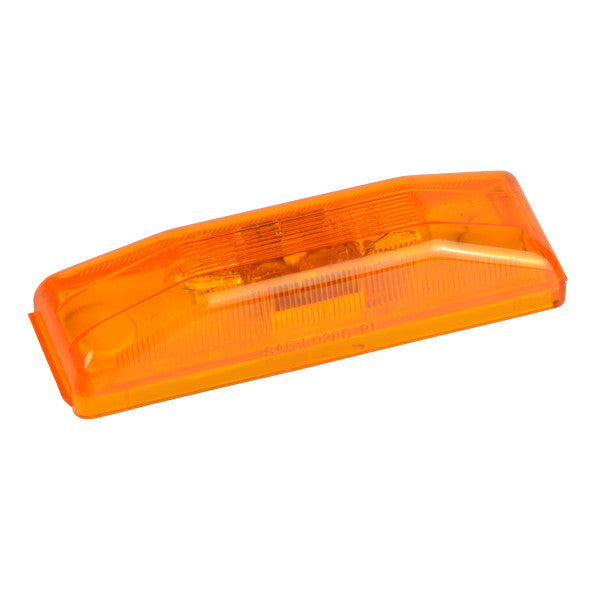

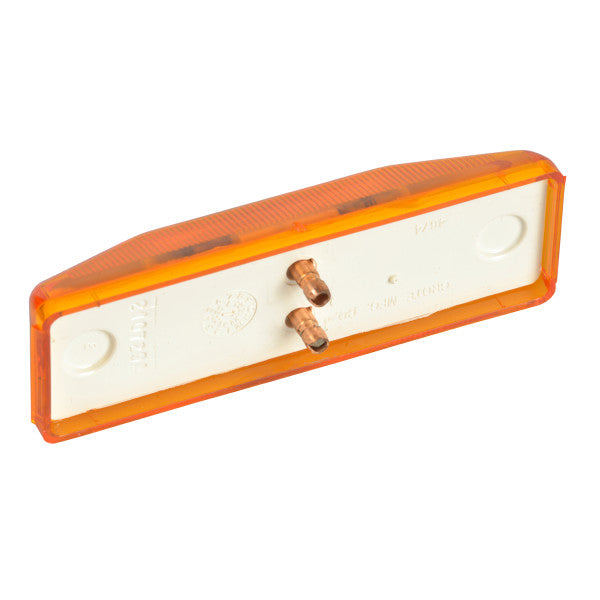

46743 Amber Clearance Marker Light

Features & benefits

• Hermetic lens-to-housing seal
• Narrow mounting applications
• Meets PC function only when mounted at a 45° angle
• Uses double-seal UBS pigtail
• Rectangular, double bulb lamp

Technical specifications

• Material: Polycarbonate Lens, Polycarbonate Housing, Polycarbonate Bracket
• Color: Amber
• Lens Color: Amber
• Amperage: 0.66 A
• Mounting Type: Bracket
• Connection Type: Male Pin
• Regulations: FMVSS 108
• Functions: P2, P3, PC
• Bulb: (2) 2 CP
• VMRS: 034-004-021
• Product Type: Clearance Marker
• Shape: Rectangular
• Warranty: 1 Year

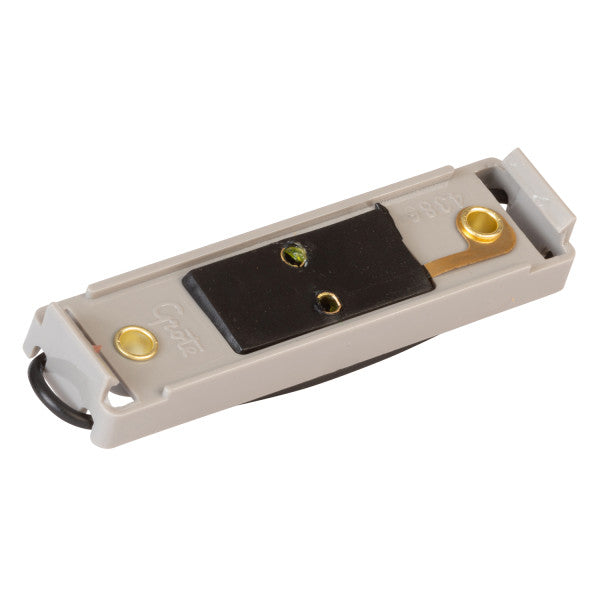

43850 Mounting Bracket

Features & benefits

• Bracket-contained plug
• Bulk Pack
• Legal mount for combination clearance/marker lamp when mounted on a 45º angle (PC)

Technical specifications

• Material: Polycarbonate
• Color: Gray
• Mounting Type: Screw
• VMRS: 034-004-036
• Product Type: Bracket
• Shape: Rectangular
• Warranty: 1 Year
