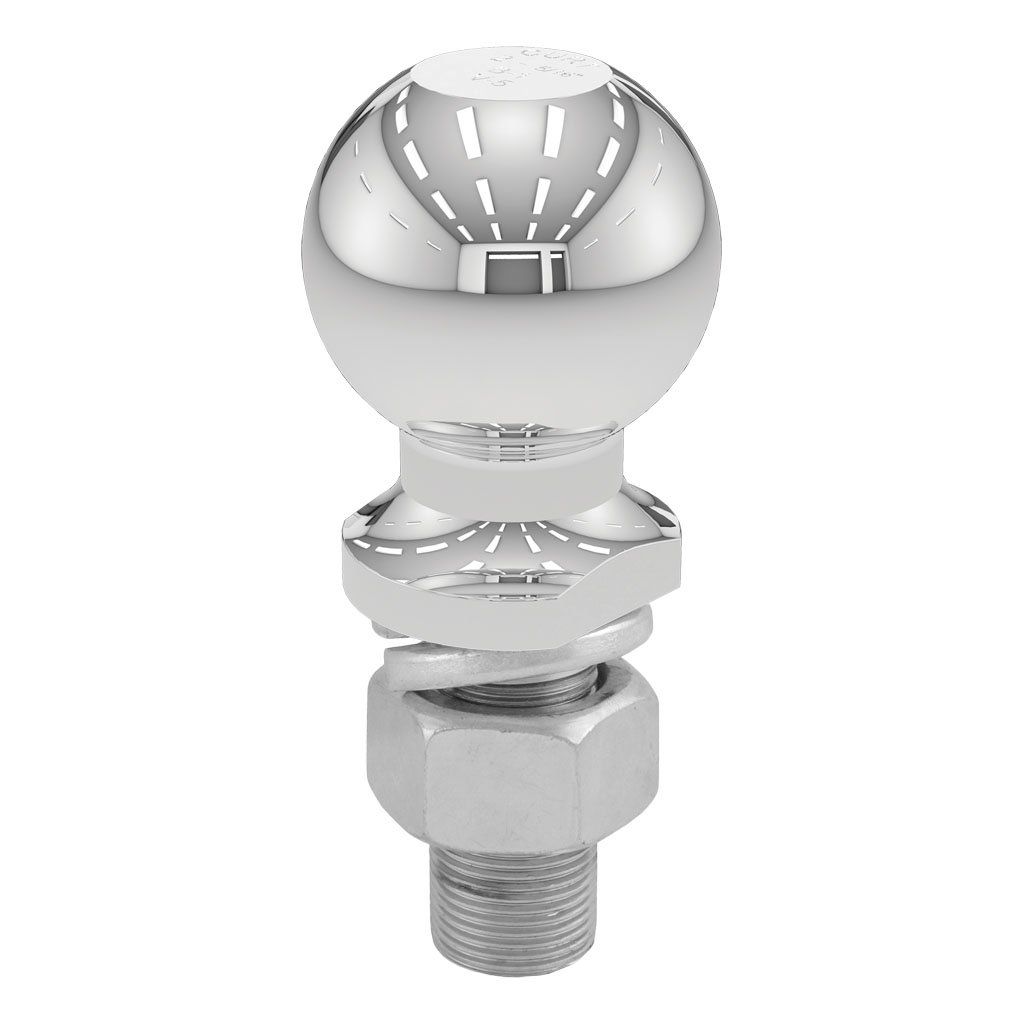

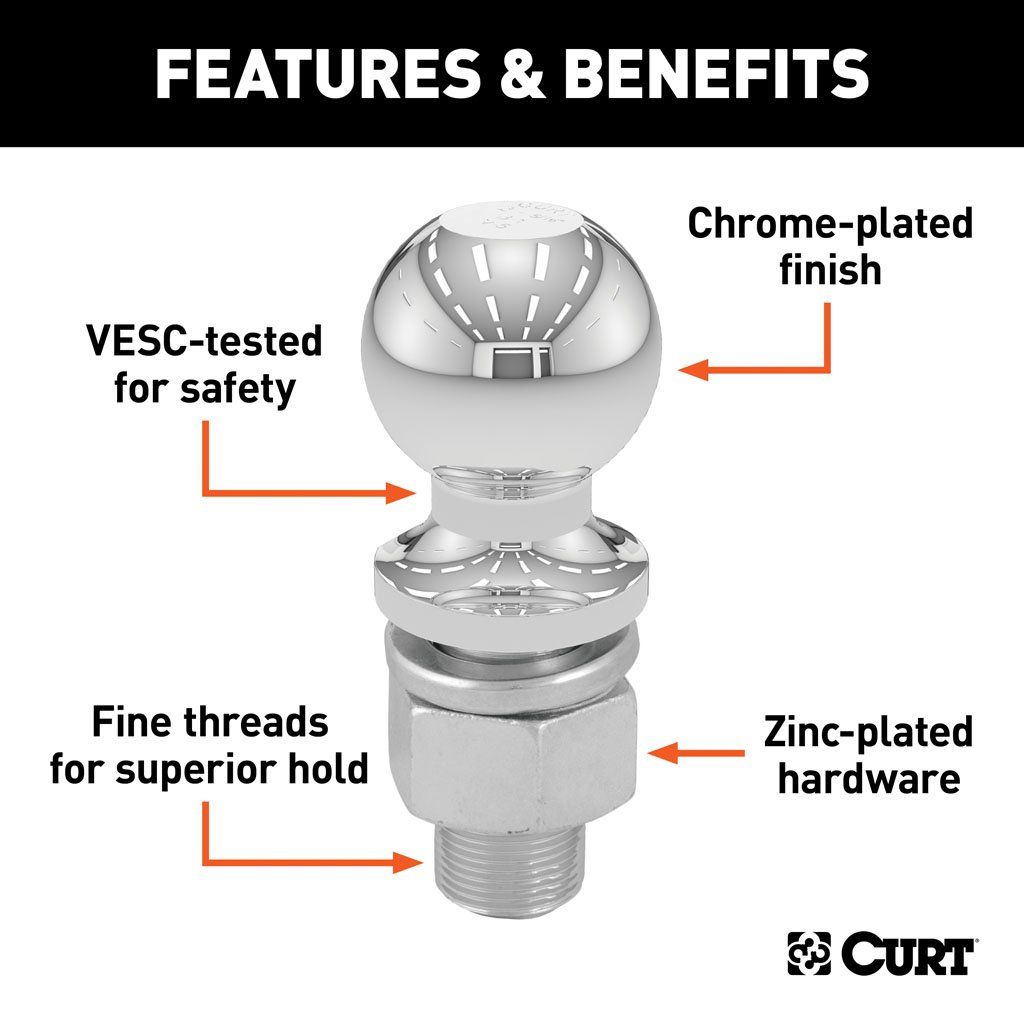

- Fits 2-5/16" couplers and accepts up to 12,000 lbs. GTW
- Constructed from high-strength, hot-forged steel
- Heat-treated for optimum wear resistance
- Protected by a durable chrome-plated finish
- Zinc-plated hex nut and helical lock washer for secure mounting
- Features fine threads for superior holding strength
Notes:
- The mounting platform must be at least 3/8" thick, and the hole size must not be more than 1/16" larger in diameter than the threaded shank

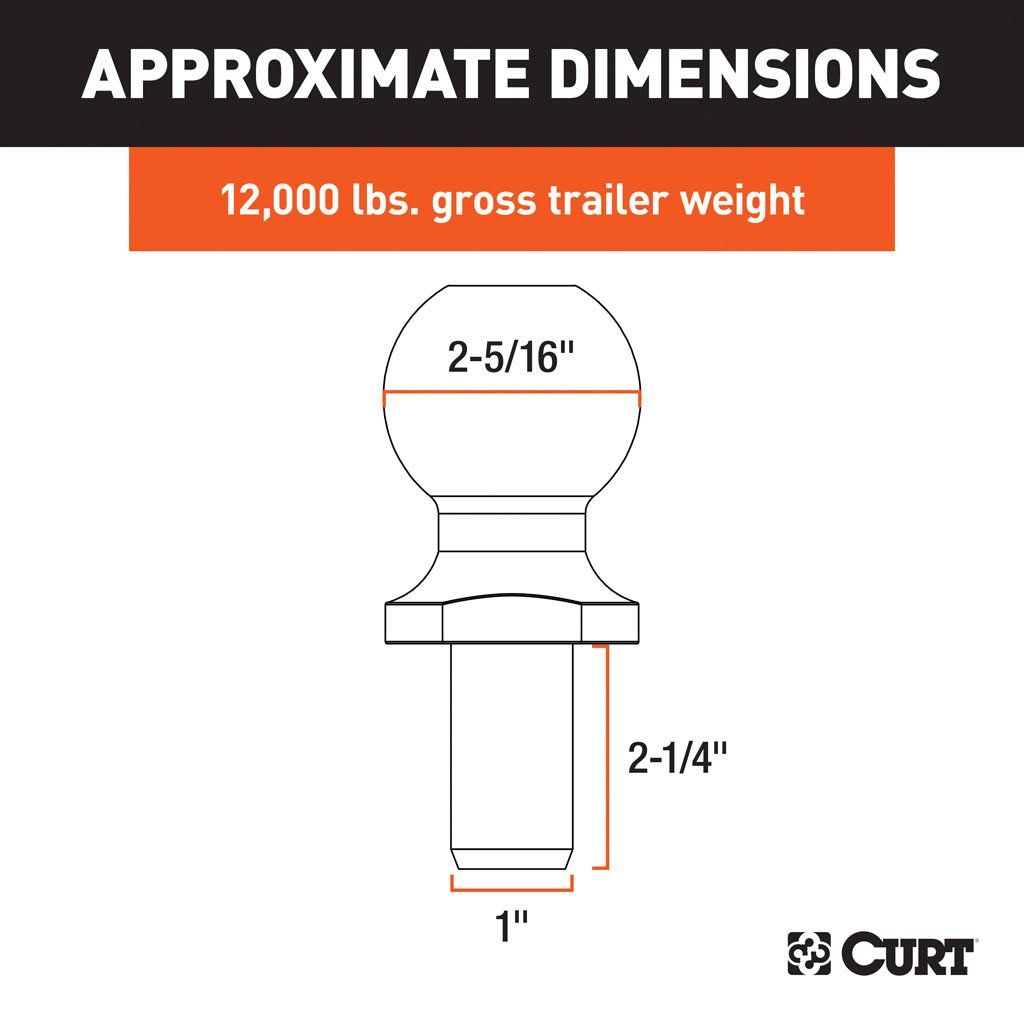

PRODUCT SPECIFICATIONS
- Material: FORGED STEEL
- Part Type: 2 5/16" Trailer Ball
- Ball Capacity: 12,000 LBS
- Ball Diameter: 2-5/16 IN
- Shank Diameter: 1
- Shank Length: 2 1/4 IN
- Shank Rise: 0 IN
- Torque: 250 FT LB
- Finish: CHROME-PLATED
- color: Silver
