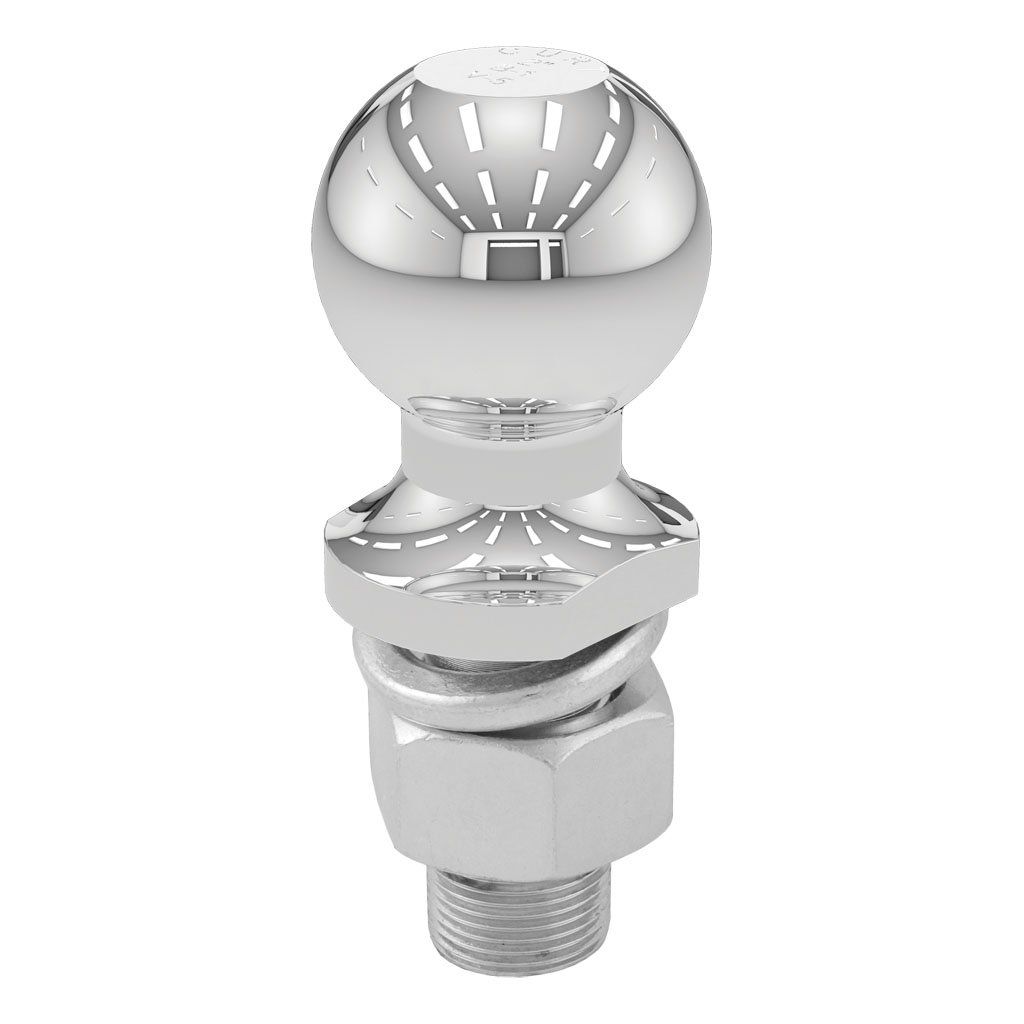

2-5/16" Trailer Ball 1-1/4" x 2-3/4" Shank 20,000lbs #40008
2-5/16" Trailer Ball 1-1/4" x 2-3/4" Shank 20,000lbs #40008
2-5/16" Trailer Ball 1-1/4" x 2-3/4" Shank 20,000lbs #40008
  • Load image into Gallery viewer, 2-5/16" Trailer Ball 1-1/4" x 2-3/4" Shank 20,000lbs #40008
  • Load image into Gallery viewer, 2-5/16" Trailer Ball 1-1/4" x 2-3/4" Shank 20,000lbs #40008
  • Load image into Gallery viewer, 2-5/16" Trailer Ball 1-1/4" x 2-3/4" Shank 20,000lbs #40008

2-5/16" Trailer Ball 1-1/4" x 2-3/4" Shank 20,000lbs #40008

Regular price
$35.50 CAD
Sale price
$35.50 CAD
Regular price
$40.35 CAD
Sold out
Unit price
per
Shipping calculated at checkout.

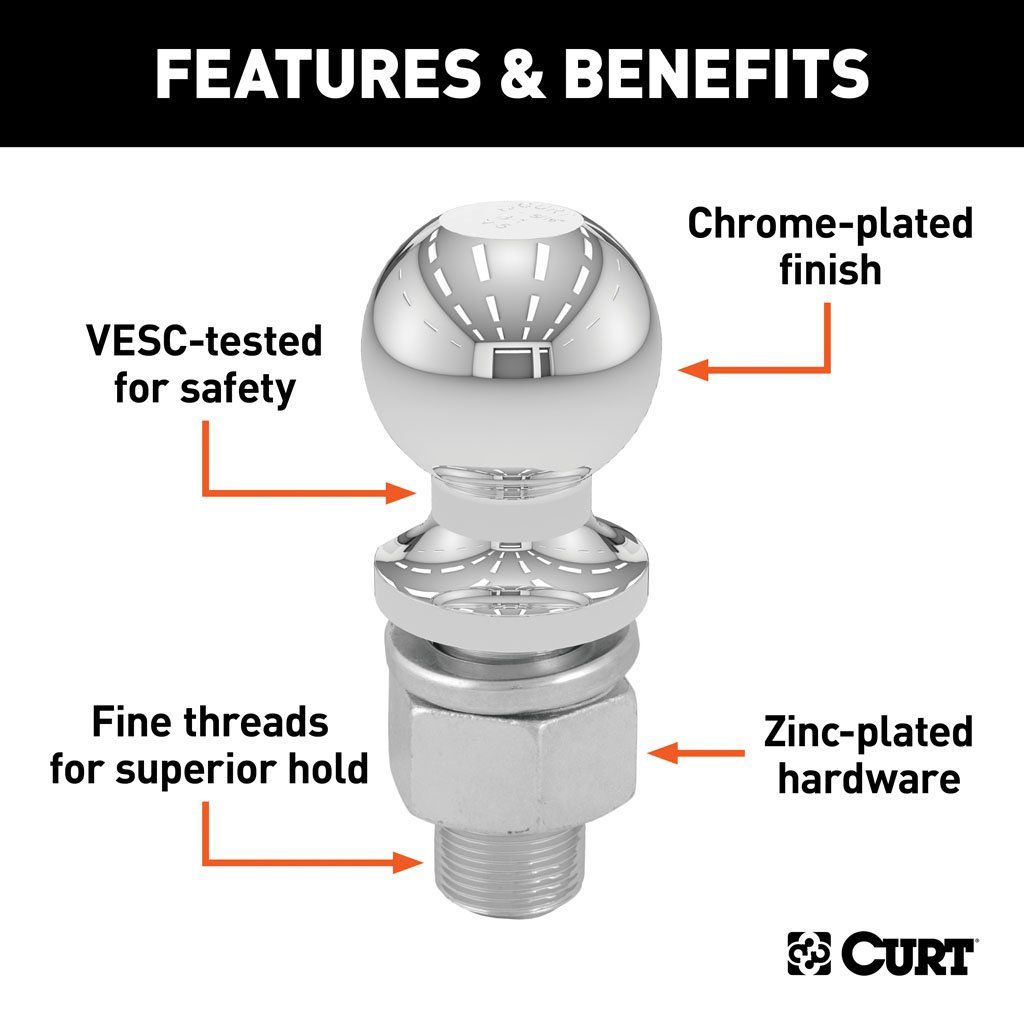

  • Fits 2-5/16" couplers and accepts up to 20,000 lbs. GTW
  • Constructed from high-strength, hot-forged steel
  • Heat-treated for optimum wear resistance
  • Protected by a durable chrome-plated finish
  • Zinc-plated hex nut and helical lock washer for secure mounting
  • Features fine threads for superior holding strength
  • Tested for safety to meet U.S. VESC V-5 specifications

Notes:

  • The mounting platform must be at least 3/8" thick, and the hole size must not be more than 1/16" larger in diameter than the threaded shank

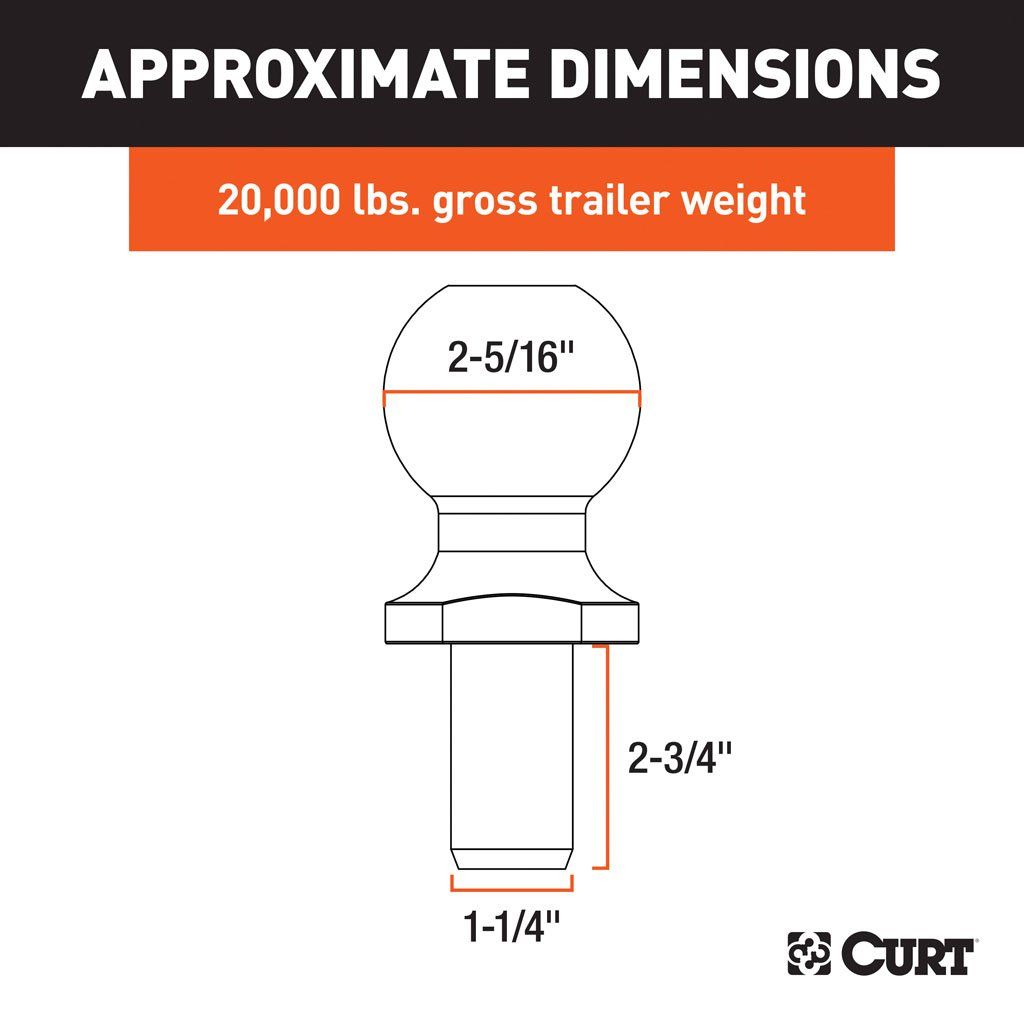

PRODUCT SPECIFICATIONS

  • Material: Forged Steel
  • Part Type: 2 5/16" Trailer Ball
  • Ball Capacity: 20,000 LBS
  • Ball Diameter: 2-5/16 IN
  • Shank Diameter: 1.25
  • Shank Length: 2 3/4 IN
  • Shank Rise: 0 IN
  • Torque: 450 FT LB
  • Finish: Chrome-Plated
