1-7/8" Trailer Ball 1" x 2-1/8" Shank, 3500lbs #40002
1-7/8" Trailer Ball 1" x 2-1/8" Shank, 3500lbs #40002
1-7/8" Trailer Ball 1" x 2-1/8" Shank, 3500lbs #40002
  • Load image into Gallery viewer, 1-7/8" Trailer Ball 1" x 2-1/8" Shank, 3500lbs #40002
  • Load image into Gallery viewer, 1-7/8" Trailer Ball 1" x 2-1/8" Shank, 3500lbs #40002
  • Load image into Gallery viewer, 1-7/8" Trailer Ball 1" x 2-1/8" Shank, 3500lbs #40002

1-7/8" Trailer Ball 1" x 2-1/8" Shank, 3500lbs #40002

Regular price
$16.70 CAD
Sale price
$16.70 CAD
Regular price
Sold out
Unit price
per
Shipping calculated at checkout.

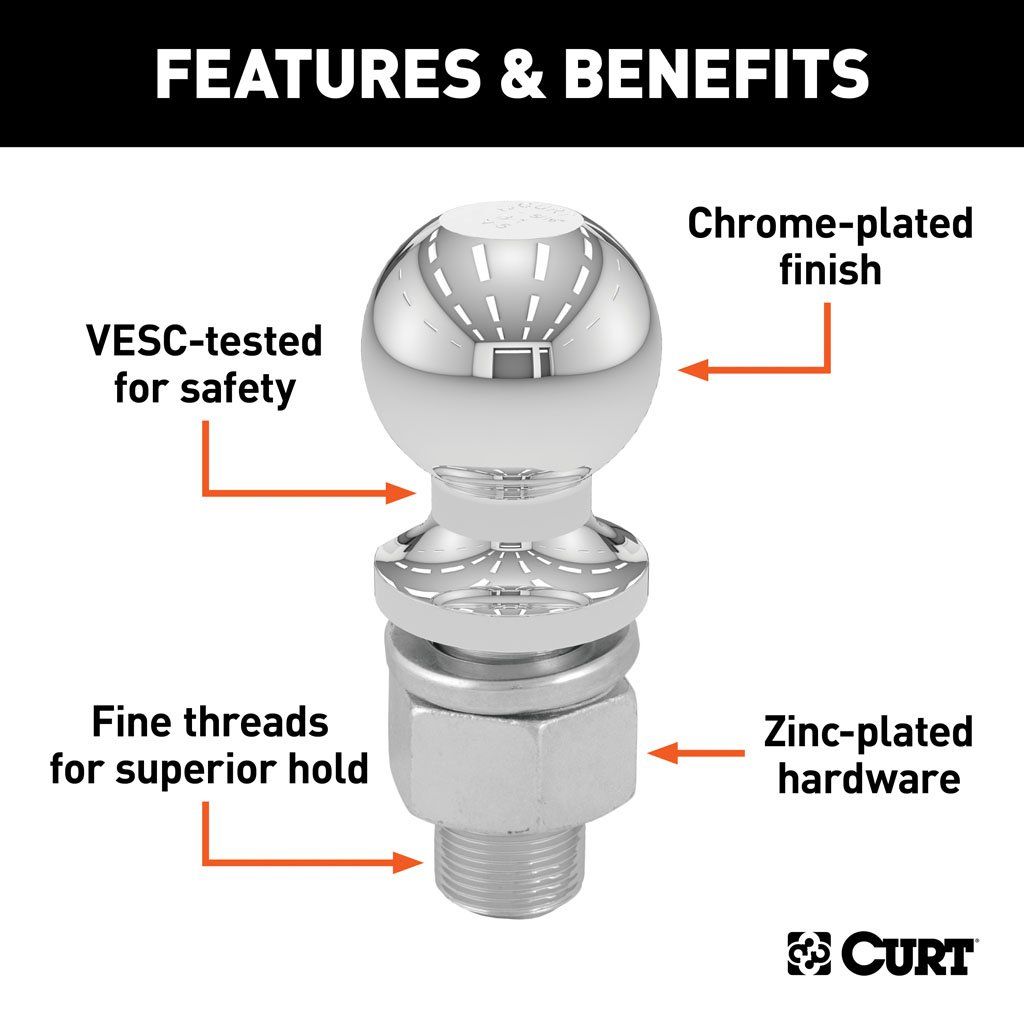

  • Fits 1-7/8" couplers and accepts up to 3,500 lbs. GTW
  • Constructed from high-strength, hot-forged steel
  • Protected by a durable chrome-plated finish
  • Zinc-plated hex nut and helical lock washer for secure mounting
  • Features fine threads for superior holding strength

Notes:

  • The mounting platform must be at least 3/8" thick, and the hole size must not be more than 1/16" larger in diameter than the threaded shank

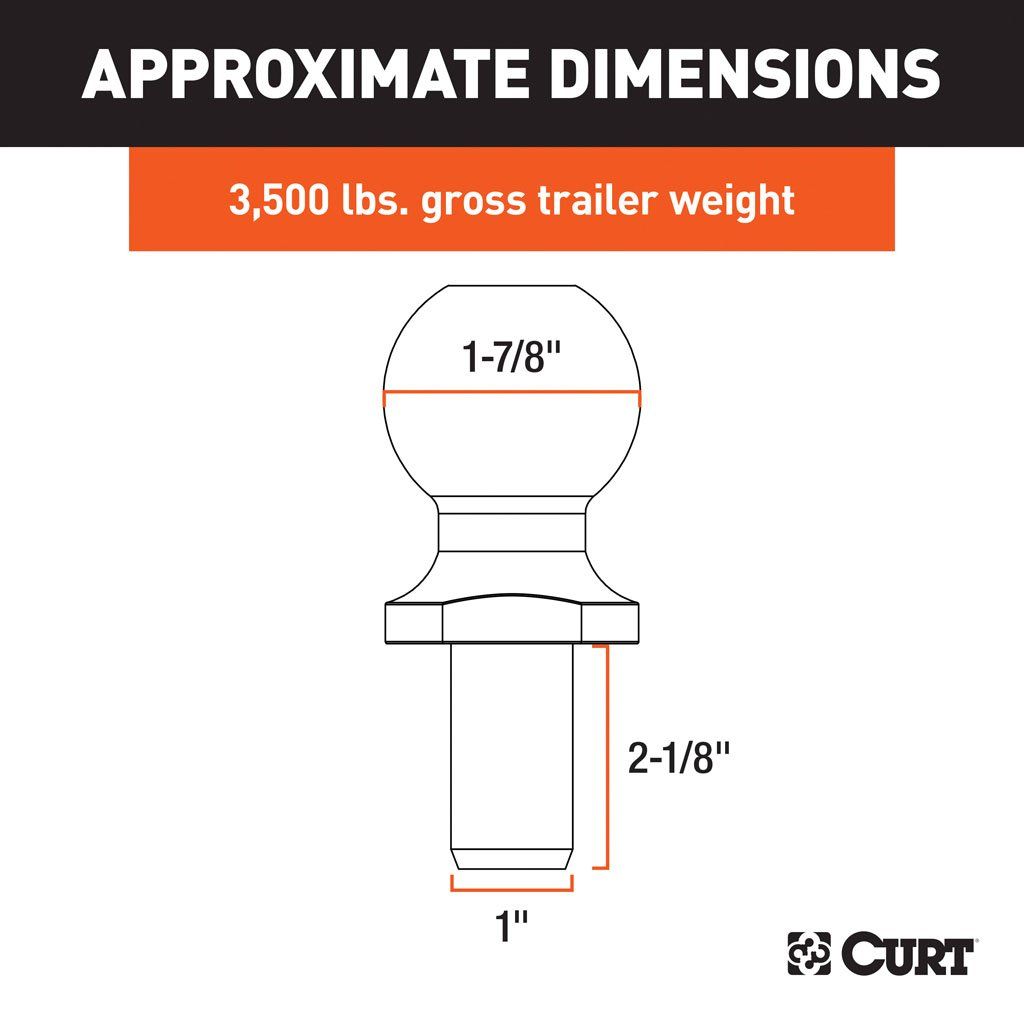

PRODUCT SPECIFICATIONS

  • Part Type: 1 7/8" Trailer Ball
  • Ball Capacity: 3,500 LBS
  • Ball Diameter: 1-7/8 IN
  • Shank Diameter: 1"
  • Shank Length: 2 1/8 IN
  • Shank Rise: 0 IN
  • Torque: 250 FT LB
  • Finish: CHROME-PLATED
  • color: Silver
