Suspension, 12000lbs Axle Equalizer Kit #HAP203-03

Dexter HAP-203-03

Multi Axle Hanger & Attaching Parts Kit

For 10-15K Axles W/3″ Wide Springs and 48.5″ Axle Spacing

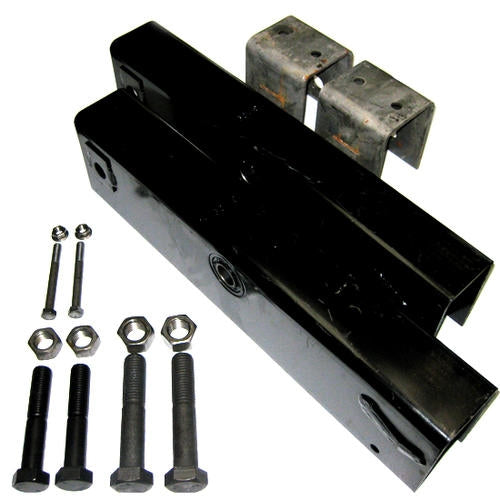

Includes:

• • (2) 4-1/8″ Tall center hangers with 1-1/8″ bolt holes (29-43-2)
  • (2) 24-3/4″ Long, left-hand equalizer (13-109-3)
    • Allows for 48.5″ between axles
  • (2) 4-1/2″ Long x 1/2″ diameter spring keeper bolts (7-95)
  • (2) 1/2″ Diameter locknuts (6-46)
  • (2) 5-1/2″ Long x 1″ diameter spring-eye bolts (7-169)
  • (2) 1″ Diameter locknuts (6-112)
  • (2) 6″ Long x 1-1/8″ diameter equalizer bolts (7-170)
  • (2) 1-1/8″ Diameter locknuts (6-72)
• Use in conjunction with HAP-103-00 for complete kit
  • HAP-103-00 includes front and rear hangers and mounting hardware
